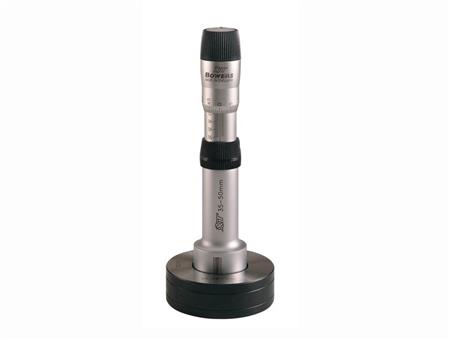

BOWERS内径千分尺XTA25M
.jpg)
宝禾机械内径干分尺（分二点式和三点式两款）具有易续，操作方便和经济耐用的特点。 它的测量范围是2－300mm，其测头及环规都具有UKAS认证。
BOWERS内径千分尺XTA25M
产品简介：
宝禾机械内径干分尺（分二点式和三点式两款）具有易续，操作方便和经济耐用的特点。 它的测量范围是2－300mm，其测头及环规都具有UKAS认证。
产品特点：
◆ 测量范围2－300mm（0.080“－12”） ◆ 2－6mm为两点式测量范围。6－300为三点式内径测量的范围 ◆ 分度值:2-6mm为0.001mm 6-300mm为0.005mm ◆ 硬质合金测量面可大于12.5mm ◆ 可测2-6mm以及大于12.5mm的盲孔 ◆ 可选加长型设计测量深孔棘齿限位 |  |
产品特点：
型号 | 尺寸范围 |
XTA1M | 2.0 - 2.5MM |
XTA2M | 2.5 - 3.0MM |
XTA3M | 3.0 - 4.0MM |
XTA4M | 4.0 - 5.0MM |
XTA5M | 5.0 - 6.0MM |
XTA6M | 6 - 8MM |
XTA8M | 8 - 10MM |
XTA10M | 10 - 12.5MM |
XTA12M | 12.5 - 16MM |
XTA16M | 16 - 20MM |
XTA20M | 20 - 25MM |
XTA25M | 25 - 35MM |
XTA35M | 35 - 50MM |
XTA50M | 50 - 65MM |
XTA65M | 65 - 80MM |
XTA80M | 80 - 100MM |
XTA100M | 100 - 125MM |
XTA125M | 125 - 150MM |
XTA150M | 150 - 175MM |
XTA175M | 175 - 200MM |
XTA200M | 200 - 225MM |
XTA225M | 225 - 250MM |
XTA250M | 250 - 275MM |
XTA275M | 275 - 300MM |
XTA1I | 0.080 - 0.100" |
XTA2I | 0.100 - 0.120" |
XTA3I | 0.120 - 0.160" |
XTA4I | 0.160 - 0.200" |
XTA5I | 0.200 - 0.250" |
XTA6I | 1/4 - 5/16" |
XTA8I | 5/16 - 3/8" |
XTA10I | 3/8 - 1/2" |
XTA12I | 1/2 - 5/8" |
XTA16I | 5/8 - 3/4" |
XTA20I | 3/4 - 1" |
XTA25I | 1 - 1 3/8" |
XTA35I | 1 3/8 - 2" |
XTA50I | 2 - 2 5/8" |
XTA65I | 2 5/8 - 3 1/4" |
XTA80I | 3 1/4 - 4" |
XTA100I | 4 - 5" |
XTA125I | 5 - 6" |
XTA150I | 6 - 7" |
XTA175I | 7 - 8" |
XTA200I | 8 - 9" |
XTA225I | 9 - 10" |
XTA250I | 10 - 11" |
XTA275I | 11 - 12" |
