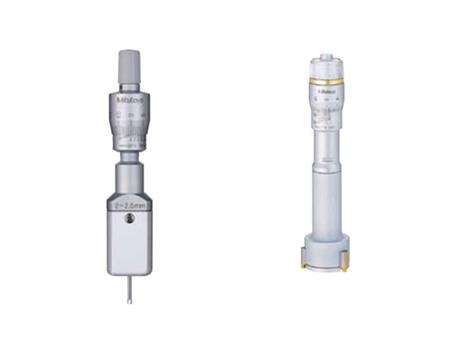

三丰内径千分尺368-004
三丰内径千分尺368-001具有良好的耐用性和冲击阻力，可直达盲孔底端测量内径。可贴近盲孔底端进行测量。
三丰内径千分尺368-004
产品规格：
1.钛涂层测针（测量范围大于12mm型号）具有良好的耐用性和冲击阻力，可直达盲孔底端测量内径。
2.可贴近盲孔底端进行测量。
3.延长杆（选件）可用于测量深孔，此功能适于6mm（.275''）以上型。
4.棘轮锁定装置可保持恒定测力。
5.校正环规(选件)可用于原点设置。
公制型单体装
测量范围 | 货号 | 分度值 | 精度* | 尺寸h | 尺寸L | 延长杆 |
2-2.5mm | 368-001 | 0.001mm | 2μm | --- | 12mm | --- |
2.5-3mm | 368-002 | 0.001mm | 2μm | --- | 12mm | --- |
3-4mm | 368-003 | 0.001mm | 2μm | --- | 22mm | --- |
4-5mm | 368-004 | 0.001mm | 2μm | --- | 22mm | --- |
5-6mm | 368-005 | 0.001mm | 2μm | --- | 22mm | --- |
6-8mm | 368-101-10 | 0.001mm | 2μm | 2mm | 59mm | 100mm |
8-10mm | 368-102-10 | 0.001mm | 2μm | 2mm | 59mm | 100mm |
10-12mm | 368-103-10 | 0.001mm | 2μm | 2mm | 59mm | 100mm |
12-16mm | 368-164 | 0.005mm | 2μm | 0.3mm | 80mm | 150mm |
16-20mm | 368-165 | 0.005mm | 2μm | 0.3mm | 80mm | 150mm |
20-25mm | 368-166 | 0.005mm | 3μm | 0.3mm | 90mm | 150mm |
25-30mm | 368-167 | 0.005mm | 3μm | 0.3mm | 90mm | 150mm |
30-40mm | 368-168 | 0.005mm | 3μm | 0.3mm | 98mm | 150mm |
40-50mm | 368-169 | 0.005mm | 3μm | 0.3mm | 98mm | 150mm |
50-63mm | 368-170 | 0.005mm | 3μm | 0.3mm | 105mm | 150mm |
62-75mm | 368-171 | 0.005mm | 3μm | 0.3mm | 105mm | 150mm |
75-88mm | 368-172 | 0.005mm | 3μm | 0.3mm | 105mm | 150mm |
87-100mm | 368-173 | 0.005mm | 3μm | 0.3mm | 105mm | 150mm |
100-125mm | 368-174 | 0.005mm | 5μm | 13mm | 158mm | 150mm |
125-150mm | 368-175 | 0.005mm | 5μm | 13mm | 158mm | 150mm |
150-175mm | 368-176 | 0.005mm | 5μm | 13mm | 158mm | 150mm |
175-200mm | 368-177 | 0.005mm | 5μm | 13mm | 158mm | 150mm |
200-225mm | 368-178 | 0.005mm | 5μm | 13mm | 158mm | 150mm |
225-250mm | 368-179 | 0.005mm | 5μm | 13mm | 158mm | 150mm |
250-275mm | 368-180 | 0.005mm | 5μm | 13mm | 158mm | 150mm |
275-300mm | 368-181 | 0.005mm | 5μm | 13mm | 158mm | 150mm |
